Data Clean Room Architecture | Privacy-First Identity Resolution

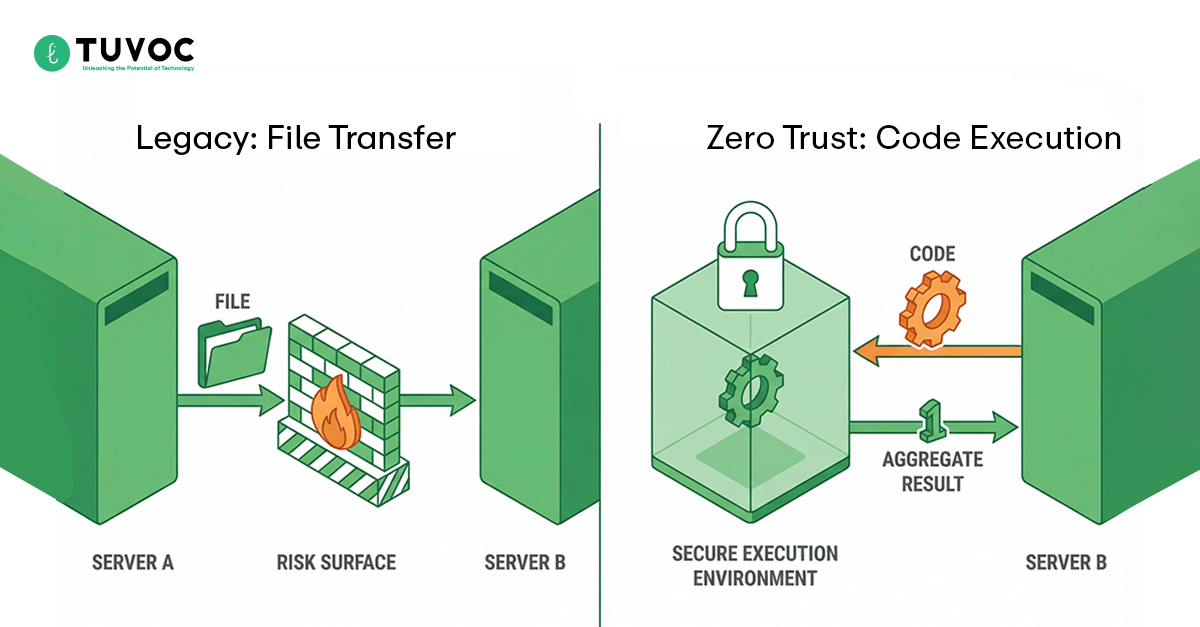

The Zero-Trust Mandate: Data Sovereignty Over Data Sharing

Traditional data collaboration assumed trust through contracts. Retailers emailed hashed lists to DSPs. Brands uploaded CRM files to agencies. Every exchange relied on one premise: if legal terms exist, data clean room architecture is unnecessary. That model is architecturally obsolete, not because contracts failed, but because movement itself became the liability.

Data sovereignty inverts the logic. Instead of securing data in transit, systems eliminate transit entirely. Clean rooms execute queries where data lives; only answers cross boundaries. Raw records never leave the firewall. The CSV export, once standard becomes a compliance violation by default.

Post-cookie identity resolution cannot function on cookie-era platforms. Data sharing assumes centralization; sovereignty demands federation. If your system moves user-level records between organizations, it fails the zero-trust mandate. Custom AdTech development treats data sovereignty as non-negotiable, not aspirational.

Reversing the workflow. In Zero-Trust architectures, the query travels to the data; the data never moves.

The “Compute-to-Data” Paradigm

When scale increases, moving petabytes of sensitive data becomes an architectural impossibility. The solution requires reversing the workflow by pushing query logic down to the local infrastructure. This mechanism, central to federated data analysis across the AdTech ecosystem extracts insights from distributed nodes.

The code visits the data, executes the math, and returns only the aggregate answer. This ensures the underlying PII remains untouched by external systems, effectively keeping the raw asset sovereign while making the logic portable across the network boundaries.

• Asset Immobility: Architecture enforces hard constraints; data remains behind firewalls.
• Logic Portability: Security depends on only the query code crossing boundaries.

The Liability of Raw Movement

Every copy of a customer record sent to a partner creates an undefendable risk surface. Once the file leaves the firewall, it escapes the organization’s control protocols. It becomes a permanent liability that cannot be recalled or defended.

Even with strict contracts, the physical presence of raw data on external servers constitutes a failure of data governance and data security architecture. True containment requires an architecture where the asset is never duplicated, preventing the possibility of unauthorized retention or secondary usage.

• Permanent Exposure: External copy deletion can never be cryptographically verified.
• Compliance Drift: External environments invariably fail to match internal standards.

Escrow Logic

Zero-trust systems remove the need for faith by inserting a neutral code layer between parties. This digital escrow ensures neither side sees the other’s raw inputs. It effectively decouples the execution of the match from the ownership.

By utilizing confidential computing enclaves, the system processes intersections in protected memory that remain opaque even to admins. The only thing revealed is the final approved overlap, while raw inputs are processed in the dark.

• Neutral Execution: Code runs in environments mathematically isolated from owners.
• Blind Processing: Inputs are computed in volatile memory and are never visible.

The Architectural Shift (Data Sharing vs. Data Computation)

Feature	Legacy Data Sharing (The Risk)	Clean Room Computation (The Standard)
Asset Movement	Raw Files Move (CSV/SFTP)	Code Moves (Queries to Data)
Trust Model	Legal Contracts (Trust the Partner)	Cryptographic Escrow (Trust the Code)
Visibility	Full Row-Level Access	Aggregate-Only Outputs
Risk Surface	External Server Breach	Internal Firewall Only
Result	Compliance Vulnerability	Mathematical Sovereignty

The Clean Room as Execution Environment: Anatomy of a “Demilitarized Zone”

A common architectural error is treating a clean room as a storage vault. A true data clean room architecture is not a database; it is a runtime environment. If data sits at rest inside, the architecture has failed.

This distinction defines the DCR vs. CDP separation. The clean room functions as a demilitarized zone (DMZ), executing logic on assets that cannot co-mingle. Privacy becomes a function of compute time rather than static access controls.

The Neutral Compute Layer

Trust requires a mathematical guarantee that neither party controls the environment where the match occurs. The system introduces a neutral data clean room layer, a computational sandbox owned by neither the brand nor the retailer.

Inputs are entered into this layer encrypted, the join logic executes, and the aggregate answer is returned. Crucially, the raw rows never touch the disk of the counterparty, acting as a blind escrow agent for the data.

• Cryptographic Isolation: Neither party possesses the keys to decrypt inputs.
• Input Destruction: Raw data is flushed immediately after calculation completes.

Query Governance

Legacy systems rely on Access Control Lists to determine who can see the data. Zero-trust architecture shifts the focus to Logic Control, determining what questions can be asked. The system evaluates the query structure itself.

This ensures privacy-safe analytics by rejecting any command that attempts to select raw rows. The governance layer sits between the analyst and the data, stripping dangerous syntax before it reaches the compute engine.

• Logic Inspection: The system validates the safety of questions before execution.
• Result Blocking: Queries designed to expose individual records are terminated.

Analysis Templates (The “Allowed” List)

Open SQL access is an infinite attack surface. To close it, mature architectures enforce a data minimization framework based on rigid templates. Analysts cannot ever write code from scratch.

They can only input variables into pre-validated, immutable query blocks. This prevents “creative” querying designed to circumvent privacy filters or reconstruct user identities through complex unauthorized table joins.

• Code Constraints: Users are restricted to filling in variables only.
• Injection Defense: Templates physically prevent malicious command injection.
• Audit Certainty: Every query matches a known pattern.

The Immutable SQL Template

The Aggregation Floor (K-Thresholds)

Even safe queries can leak identity if the sample size is too small. The system must enforce a hard-coded suppression rule known as K-Anonymity to prevent isolation. Any result returning fewer than k users is automatically nulled.

This privacy-preserving computation ensures no outlier can be isolated, regardless of how specific the targeting criteria become.

• Automatic Nulling: Sub-threshold results return zero by default.
• Infrastructure Limits: Safety threshold is set at the root.
• Statistical Noise: Only audiences offering aggregate safety exit.

Ephemeral Instantiation

The most secure data is data that does not exist. In a clean room join, the combined table is never written to a hard drive. It is instantiated in volatile memory for the calculation duration.

Once the query completes, the electrical charge holding the data dissipates, and the joint dataset vanishes. This capability, fundamental to secure data collaboration, means there is no “master file” to hack because it never existed.

• Zero-Copy Logic: Data is computed in memory, never stored.
• Instant Purge: Joint table lifecycle is measured in milliseconds.

Identity Resolution Inside the Wall: The End of Probabilistic Logic

The shift to clean rooms forces a hard pivot in how identity is resolved. In the open web, matching was probabilistic a “best guess.” Inside a clean room, guessing is no longer viable. This defines identity resolution in a cookieless world.

Encryption breaks fuzzy logic. Because data is hashed before entry, a near-match looks identical to a non-match. This forces systems to abandon probability in favor of strict, deterministic proof. Ambiguity is structurally eliminated in cookieless identity resolution.

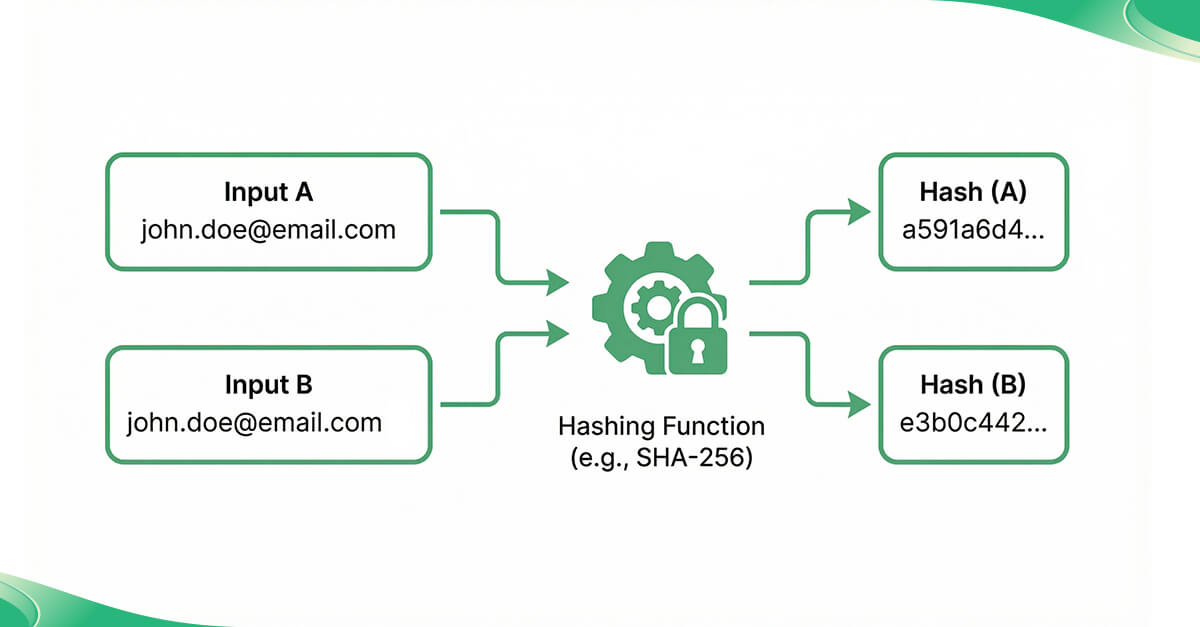

The Cryptographic Constraint

The hash functions, such as SHA-256, are brittle. Even an additional space, a capital letter, or a misplaced hyphen can transform the resulting string completely. There is no “close enough” when comparing hashed identifiers blindly.

If the input strings differ by even one bit, the keys will never intersect. This binary nature means identity resolution is an exact-match equation. It tolerates zero variance between the brand’s dataset and the retailer’s environment.

• Zero Tolerance: Algorithms require character-perfect input alignment to match.
• Pattern Destruction: Encryption removes all semantic similarities between data.

Data Normalization Rigor

Because the match must be exact, the resolution burden moves upstream to cleaning. “Garbage in” no longer yields “Garbage out”—it yields “Zero results.” A robust first-party data strategy prioritizes syntax over scale.

Before encryption, every record must undergo aggressive normalization. If inputs are not standardized to a single global protocol, the clean room fails to produce matches. The match rate is determined entirely by the hygiene of the input.

• Syntax Priority: Cleaning protocols must occur before encryption begins.
• Yield Dependency: Match rates correlate perfectly with the strictness of normalization.

Strict Normalization Logic

String Standardization (Email & Text)

Text fields contain the highest variance and require strict rules. Every email address must be forced to lowercase and stripped of whitespace. This ensures pseudonymization produces consistent keys across different partners.

Domain parsing is also critical. Variations must resolve to a canonical standard. Without this pre-computation, valid users are discarded as non-matches simply due to minor input inconsistencies between the brand and retailer.

• Case Enforcement: Both upper and lowercase characters have been changed to lowercase.
• Whitespace Removal: Leading, trailing, and inner spaces are gutted.
• Domain Parsing: Domains of email are processed to be in a canonical form.

Numeric Standardization (Phone & Address)

Phone numbers are equally brittle. They must be converted to the E.164 standard, stripping formatting characters and enforcing canonical country codes. This guarantees customer identity is linked solely by the integer sequence, not formatting.

Addresses require similar rigor, relying on geocoding to convert locations into unique alphanumeric strings. This prevents mismatches caused by abbreviations or spacing errors that would otherwise break the cryptographic hash function.

• E.164 Format: Phone numbers stripped of formatting to digits.
• Address Geocoding: Locations converted to standardized, unique location codes.
• Integer Only: Non-numeric characters removed to prevent hash failures.

The Death of “Fuzzy” Logic

Probabilistic matching relies on seeing “similar” patterns between profiles to infer a connection. Encryption relies on destroying patterns to protect privacy. These two are mutually exclusive, and thus there is a deterministic vs. probabilistic matching trade-off.

It is impossible to do a fuzzy match on encrypted data, as the fuzziness is concealed behind the hash. If the system cannot see the data, it cannot guess. Clean rooms effectively kill probabilistic logic.

• Pattern Loss: Encryption algorithms obscure similarities required for guessing.
• Binary Outcome: Records either match exactly or do not.

Blind Intersection Protocols: The Mechanics of Matching Without Exposure

The technical challenge of a clean room is finding commonality without revealing uniqueness. Traditional matching requires sharing lists, which is forbidden in zero-trust architectures. The solution is a blind intersection applied to audience overlap analysis.

The protocol calculates the “Venn Diagram” center without ever mapping the outer circles. This allows two parties to identify shared customers while mathematically guaranteeing that non-shared records remain invisible. The system confirms presence without confirming identity.

The Identity Match Protocol (Probabilistic vs. Deterministic)

Method	The Input Logic	The Clean Room Outcome
Probabilistic	“Looks like User A” (Device + IP)	FAILURE: Encryption destroys patterns. “Similar” hashes are totally different strings.
Deterministic	“Is User A” (Email/Phone)	SUCCESS: Exact string match (Hash(A) == Hash(A)).
Match Rate	High Volume / Low Accuracy	Lower Volume / 100% Accuracy
Primary Use	Open Web Targeting	Financial/Retail Data Joins

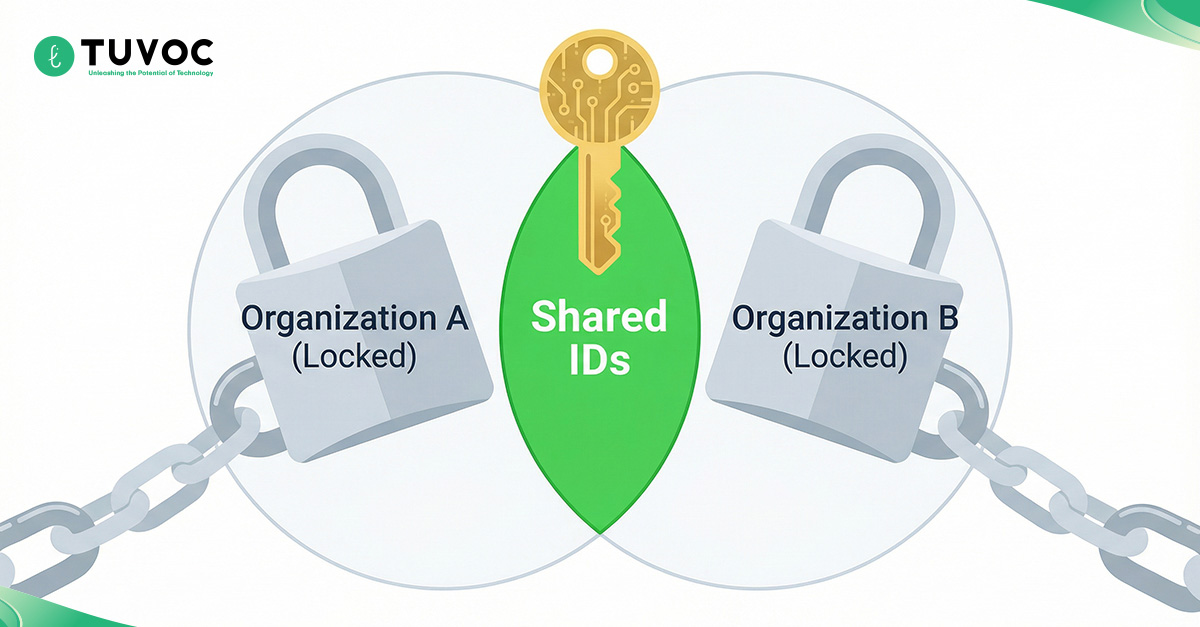

Private Set Intersection (PSI)

PSI is the cryptographic standard for blind matching. It allows two parties to compute the intersection of their datasets without exposing the non-intersecting elements. This ensures that non-overlapping records remain invisible to the counterparty.

The algorithm uses commutative encryption to compare values. If a user exists in both sets, the math resolves to a match. If not, the result is cryptographic noise, effectively securing the private set intersection process.

• Mathematical Blindness: Neither party can see records that do not overlap.
• Commutative Logic: Encryption order does not affect the final output.

The Opaque Match

The system never compares actual user profiles. It compares encrypted strings. It calculates whether two hashes are identical. This opaque comparison confirms identity mathematically without decrypting the data to reveal the anonymized data matching source.

This method allows for validation at scale. The system validates that a person is the same across two environments, but it never learns who that person actually is in the real world.

• String Equality: Matching occurs on the hash, not PII.
• Decryption Block: The system cannot reverse the hash to read.

Zero-Leakage Guarantee

Structural containment is the primary goal. If a user exists in the Brand’s list but not the Retailer’s, the Retailer’s system never learns that the user exists. This creates a data minimization guarantee.

Information is only revealed if it is already known to both parties. Any record that is unique to one side remains cryptographically invisible to the counterparty, preventing “fishing” for high-value targets.

• Absolute Containment: Non-matches generate zero signal or metadata.
• Anti-Fishing: Prevents partners from using queries to discover users.

Differential Privacy: The Mathematical Guarantee of Non-Reversibility

While hashing guards the input, distinctive privacy shields the output. Even with perfect encryption, an analyst could theoretically isolate a user by running repeated, slightly different queries. Differential privacy prevents this by injecting mathematical noise.

The system adds calculated variance to the results. Instead of reporting “100 users,” it reports “102” or “98.” This slight blur makes reverse-engineering the contribution of any single individual infeasible.

Noise Injection

The system adds statistical noise to every aggregate report. This variance is calibrated to be statistically insignificant for the analyst but structurally significant for privacy. It prevents the reconstruction of individual records from the aggregate data.

This technique underpins privacy-safe identity resolution. The system maintains the line between the data so that the existence or lack of one person will not alter the output significantly enough to be noticed.

• Statistical Blur: Random noise is introduced to avoid accurate isolation.
• Utility Preservation: Variance is kept low to maintain analytical accuracy.

Implementing Noise Injection (Laplace Mechanism)

The “K-Anonymity” Threshold

To prevent “segment of one” targeting, the system enforces a minimum crowd size. Any query that returns fewer than k users is suppressed. This identity resilience mechanism ensures safety in numbers.

If a segment is too small, the system returns zero. This prevents an analyst from narrowing down the criteria until only one person remains in the target pool, effectively blocking high-precision surveillance.

• Crowd Requirement: Results are blocked if the user count is low.
• Anti-Targeting: Prevents drilling down to single-user specificity.

The Privacy Budget (Epsilon)

Every query leaks a tiny amount of information. To control this, the architecture sets a “privacy budget” (epsilon). This limits the total number of questions allowed on a specific dataset or segment.

Once the budget is exhausted, the dataset locks down. This privacy-by-design feature prevents an attacker from running thousands of questions to triangulate a user’s identity through the process of elimination.

• Query Cap: Limits the total number of allowed interrogations.
• Automatic Lock: Access is revoked once the risk threshold peaks.

Trust Anchors & Failure Modes: Where Clean Rooms Break

Clean rooms are not magic; they are software. Like all software, they have failure modes. A data clean room architecture is only as secure as its key management and governance protocols.

If the keys are mishandled, the room becomes transparent. If the query logic is too permissive, the privacy guarantees collapse. Security is not a product feature; it is an ongoing operational discipline of maintaining the walls.

Key Management & Custody

The vulnerability of a clean room often lies in the encryption keys. If the keys used to hash the data are shared or managed poorly, the protection collapses. Custody must be strict to meet GDPR compliant identity resolution requirements.

The party that holds the data should not hold the keys to decrypt it. Separation of custody prevents any single admin from having total visibility, ensuring that the lock cannot be picked by the person holding the box.

• Key Isolation: Keys are stored physically separate from encrypted data.
• Admin Blindness: System admins cannot access keys to decrypt rows.

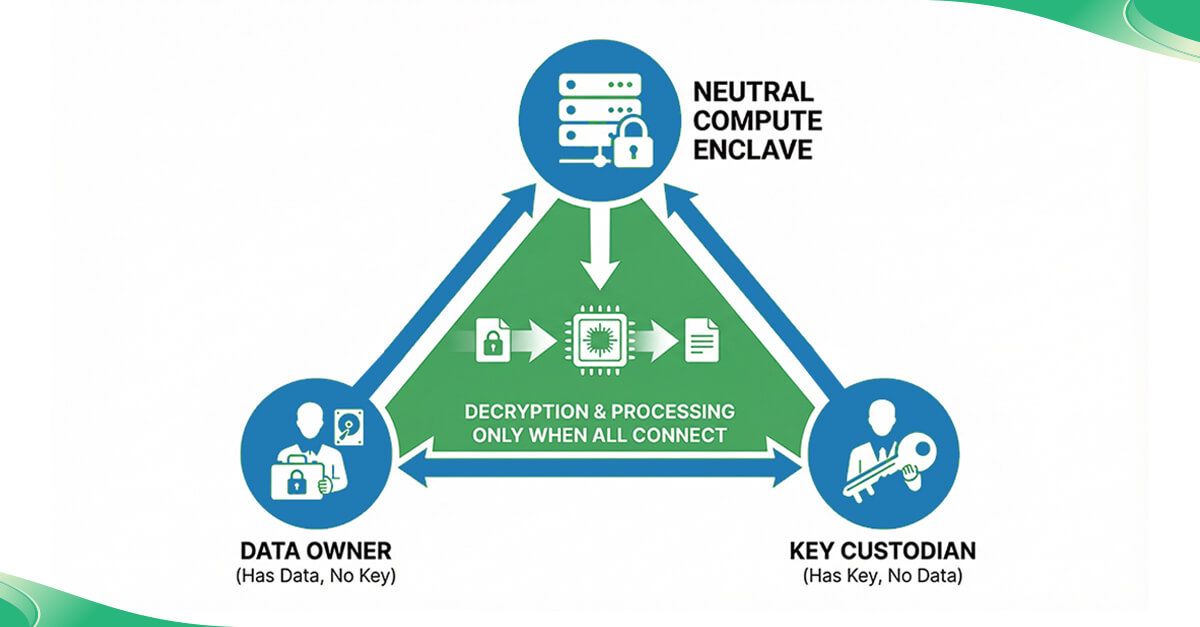

Separation of Duties (Data Owner vs Key Custodian)

No single team should control both the dataset and the encryption keys. This introduces a check-and-balance system. If the data owner wants to decrypt, they need external authorization.

This separation prevents insider threats. Duty separation ensures a privacy-first marketing stack can’t be manipulated by any one individual with root access given to the database.

• Dual Control: Separation demands two persons to authorize decryption.
• Insider Defense: Prevents single-user compromise of the dataset.
• Audit Trail: Every key access request is logged.

The Linkability Attack

A sophisticated attacker can isolate a user by running multiple “safe” queries that overlap. By comparing the results, they can triangulate identity. The system must detect this identity graph vulnerability immediately.

The defense is a global query history. The system analyzes the pattern of questions, not just the individual question. If it detects an attempt to triangulate, it blocks the query series before the pattern completes.

• Pattern Detection: The System monitors for overlapping query shapes.
• Triangulation Block: Prevents isolating users through intersecting multiple lists.

The “Differencing” Vulnerability

An attacker executes two queries, one query being that of All Users and another one with All Users but excluding John. The results obtained were subtracted to reveal John’s data. This signal loss mitigation failure must be blocked.

The system prevents this by recognizing the intent. It blocks queries that are mathematically designed to isolate a specific difference, ensuring that subtraction cannot be used as a decryption tool.

• Subtraction Block: Prevents queries designed to isolate individuals.
• Intent Analysis: Algorithms flag query patterns that look subtractive.
• State Awareness: System remembers previous queries to prevent differencing.

Global Query History (The Defense)

To stop these attacks, the system tracks the history of all queries. It checks if the current question, combined with past questions, creates a risk. This secures identity resolution without cookies.

This stateful monitoring is critical and typically enforced by AdTech middleware, ensuring the system evaluates not just the current SQL command but the entire context of the session to prevent cumulative leakage.

• Session Memory: Tracks all queries run during a user session.
• Cumulative Risk: Calculates risk based on the sum of knowledge.
• Contextual Block: Denies queries that complete a triangulation pattern.

Over-Permissive Joins

The danger of allowing “SELECT *” in a privacy environment is catastrophic. Queries must be restricted to specific aggregations like SUM or COUNT. Raw row retrieval constitutes a first-party data breach.

Governance failure occurs when these restrictions are loosened for convenience. The system must physically block any command that requests raw data, regardless of the user’s permission level or seniority.

• Aggregation Only: Users can only request math, not lists.
• Row Blocking: Physical inability to return row-level data.

The Exportable Artifact: Activating Decisions Without Leaking Identity

If data stays in the room, what leaves? The output of a clean room is the instruction, not the identity. Clean room activation relies on exporting tokens and campaign logic, never lists of specific people.

The system exports the decision (“Show Ad A”) but never the user (“John Doe”). This allows the marketing ecosystem to function without the liability of handling raw PII. The artifact is anonymous but actionable, maintaining privacy.

The Deal ID (Activation)

The output for the DSP is a “Deal ID” or a token. The DSP targets this token as a proxy, without visibility into the users it represents. This enables clean room activation workflows central to demand-side platform development.

The media buyer targets the “Deal ID” as a proxy. The platform matches the ID to the user in real time, but the buyer only sees the aggregated performance of the deal logic.

• Tokenized Output: The system exports anonymized IDs instead of raw emails.
• Proxy Targeting: Buyers target the Deal ID, never the user.

The Attribution Log (Measurement)

The output for the analyst is a validation report. It confirms that Impression A led to Sale B. This provides closed-loop measurement numbers without revealing who actually bought the specific product.

This log is aggregate proof. It validates the effectiveness of the media spend but strips out the personal identifiers of the purchasers. This defines modern Cookieless Attribution Models in a privacy-first stack.

• Validated Match: Reports confirm conversion events without exposing identity.
• Aggregate ROAS: Output measures campaign performance, not individual behavior.

The “No-Exfiltration” Rule

Architectural blocks must physically prevent the “Download CSV” function. There should be no mechanism to export PII columns. This constraint is vital for data clean rooms for first-party data activation security.

The system functions as a one-way boundary—data enters, but it does not exit. Only the insights and the aggregate answers are allowed to leave the secure environment boundaries.

• Export Block: Architecture enforces physical inability to download data.
• Insight Only: Only aggregate charts and numbers can be exported.

Conclusion: Containment is the Only Strategy

The transition to privacy-first marketing is not a policy update; it is an infrastructure migration. The era of data sharing is over; the era of AdTech software development based on computation has begun.

Success depends on containment. Locking data behind firewalls and moving the code to the asset restores sovereignty. Data clean room architecture is the only viable path to collaboration today

Privacy is now an engineering problem. Legal contracts cannot secure data that physically moves. True security requires a zero-trust model where the asset never leaves the owner’s control.
